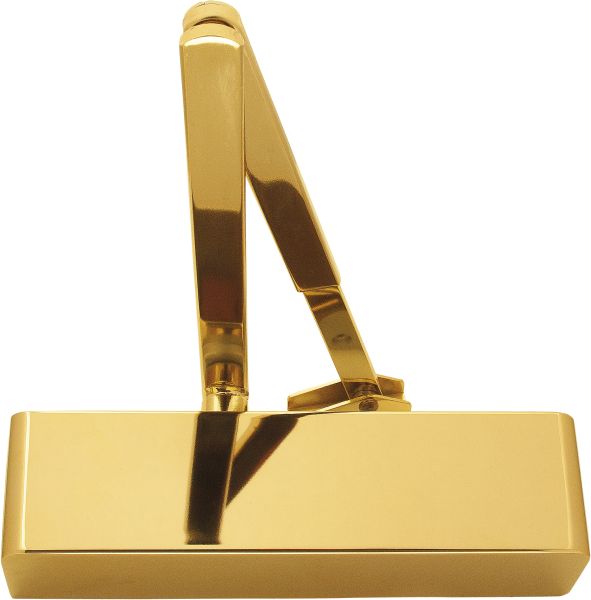

AR1500-PB/PB Hoppe Arrone Size 2-4 Overhead Spring Door Closer c/w Backcheck - Polished Brass (87107180)

Description

ARRONE overhead door closing device:

• Power size: 2 to 4 adjustable by spring tension

• Function: Closing speed, backcheck, latching

• Cover: Radiused cover

• Maximum door width: 1,100 mm

• Maximum door weight: 80 kg

• Arm application: Fig 1, Fig 6 and Fig 61 fixing positions

• Successfully type tested for conformity to all the requirements of BS EN 1154:1997

• - Door mount pull (Fig 1), door mount push (Fig 6), transom mount pull (Fig 61): 3 | 8 | 4/2 | 1* | 1 | 4

• Included in a successful fire test to BS EN 1634 Part 1. Assessed for use on 30, 60 and 120 minutes timber fire doors and 240 minutes on steel fire doors.

• CE Marked: AD0124, UKCA Marked: AD7683

• Certifire approved: CF294, CE DOP: HUK0001, UKCA DOP: HUK0001-UK

• The AR1500 can satisfy the opening force recommendations of BS 8300 and ADM when fitted in Fig 1 to a door with minimum width of 938 mm according to third party data. However other installed hardware, door seals and differential air pressure will affect the products as fitted performance meaning that the door closer alone cannot allow compliance to BS 8300 and ADM.
