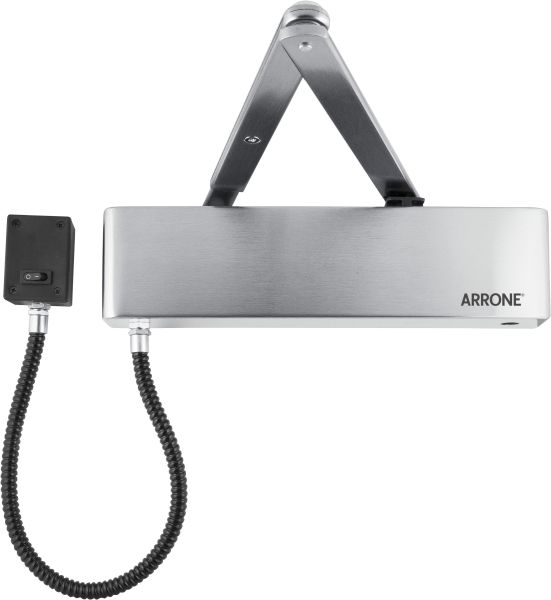

AR1998-L-SSS/SSS Hoppe Arrone EN.4 Electro-Magnetic Hold Open/Swing Free Overhead Door Closer - Satin Stainless Steel (87132277)

Description

ARRONE overhead electromagnetic door closing device:

• Fixed power size 4

• Function: Closing, latching, electro hold open, electro swing free

• Cover: Slimline cover

• Maximum door width: 1,100 mm (Fig 1), 950 mm (Fig 6)

• Maximum door weight: 80 kg (Fig 1), 60 kg (Fig 6)

• Arm application: Fig 1 and Fig 6 fixing positions

• Successfully type tested for conformity to all the requirements of BS EN 1154:1997

• - Door mount pull side: 3 | 8 | 4 | 1* | 1 | 3

• - Door mount push side: 3 | 8 | 3 | 1* | 1 | 3

• Included in a successful fire test to BS EN 1634 Part 1. Assessed for use on 30, 60 and 120 minutes timber fire doors.

• CE Marked: AE0017, UKCA Marked: AD7697

• CE DOP: HUK0006-1 (Fig 1), HUK0006-2 (Fig 6), UKCA DOP: HUK0006-1-UK (Fig 1), HUK0006-2-UK (Fig 6)
