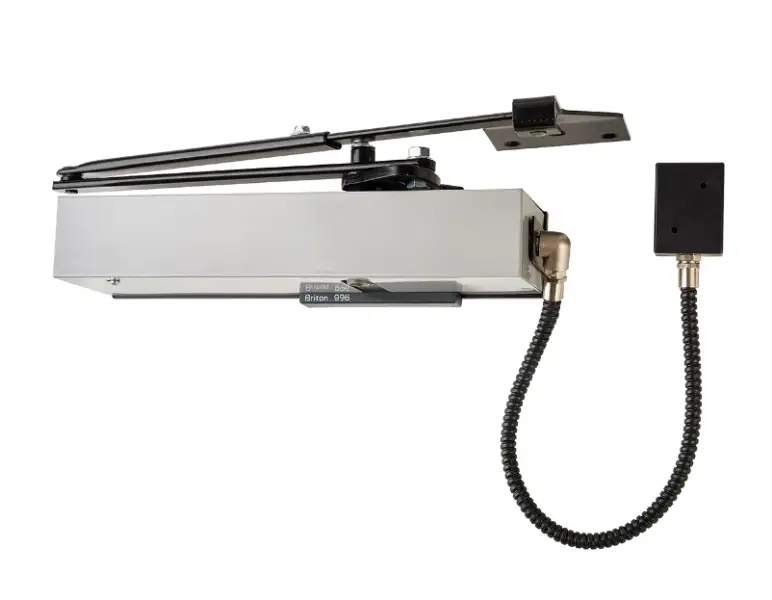

BRITON 9963/66 Fixed Power Size 3 Electromagnetic Hold Open/Free Swing Door Closer - Silver (Fig 66 - Push Side Mounted)

Description

A series door closers with an integrated electromagnetic hold-open mechanism. Typically used on fire rated doors where the hold-open or swing-free feature is required.

- Fixed power size EN 3

Satisfies the requirements of Approved Document M

Suitable for doors up to 950mm wide and 60kg (9963)

Certified for door, transom and parallel arm mount applications

Caption plate can be set to operate in hold-open or swing-free at the point of installation

Adjustable closing speed & latch action

Fitting template for quick and easy installation

Designed for use on low voltage circuits 24v DC linked to a fire alarm

Supplied with armset and brackets for regular or transom mounting

Electromagnet is controlled by the building fire alarm/detector and activates the ‘catch plate’ to ensure the door closes automatically in the event of a fire or power failure.

Optional rear entry cable allows units to be installed with concealed cable via a concealed loop to protect the closer against vandalism.

Supplied with flexible armoured power loop (330mm long as standard) to run power safely from the door frame to the closer

Available in a silver finish all with matching arms and track

10 year guarantee (mechanical), 2 year guarantee (electrical)
