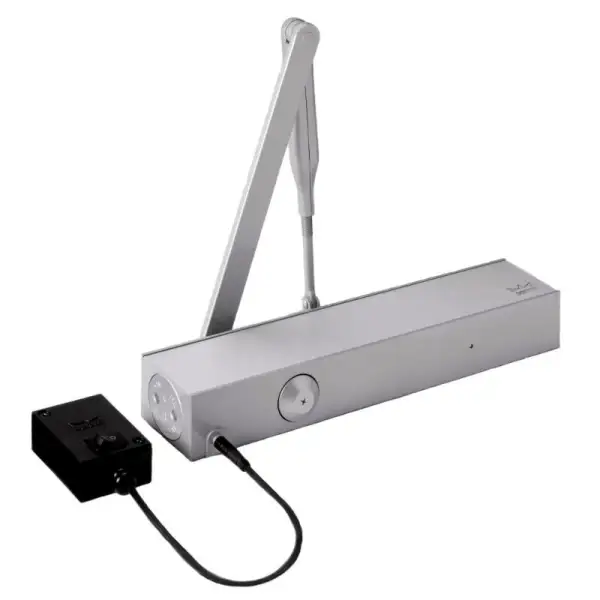

DORMA TS73EMFS EN.4 Free Swing Electro-Magnetic Overhead Door Closer c/w Silver Square Cover

Description

The TS 73 EMF is a hydraulic door closer with integrated electro-magnetic hold-open for use on fire and smoke check doors.The hold-open of the door is electromagnetically controlled and in the event of a fire, the door is reliably closed by the integral hydraulic closer. The closing cycle can also be initiated by manual door operation or automatically in the event of a power failure.

Certified to ISO 9001

Equipped with a free-swing arm assembly, the TS 73 EMF can also be employed where doors are required to operate normally - functioning in the same way as doors without a door closer. If the door leaf is opened wide (min. 75°), the closer spindle is held in this position by the electro-magnetic hold-open device in the hydraulic closer body. However, the door can be freely operated by virtue of the free-swing function integrated in the arm.In the event of a fire or power failure, the door is reliably and securely closed automatically by the hydraulic door closer. The swing free function is particularly beneficial in settings such as care home bedrooms. This feature enables the door to be opened and closed with minimal effort, providing privacy while still ensuring safety. This function is ideal for environments where easy door operation is necessary for the occupants.

Operating voltage 24 V DC.
