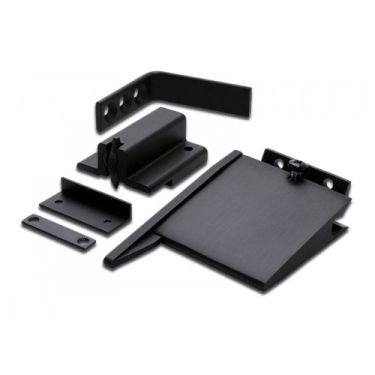

DSBKAAFD MK2 Fire Rated Door Selector (Wedge Shape) - Black

Description

Fire Rated Model (MK2) - UL & CE Marked

The DS*FD door selector ensures that a pair of self closing fire doors with rebated meeting stiles or security astragals will always shut in the correct sequence automatically, no matter which door is opened first. Successfully tested to BS EN 1158. The MK2 fire door coordinator has a surface mounted rebate, therefore it's not going to damage the fire doors frame structure & can be used on any door material. This fire rated door selector ensures that the doors do not incorrectly overlap once the pair of doors are shut. This is particularly important for fire-rated doors and self-latching security doors as it maintains the doors seal.

Suitable for all door types.

Max. door weight 120kg.

Door width 700mm - 1000mm

Door Thickness Min. 38mm - Max. 58mm

Rebate - Max. 25mm

Door closer suitable - Power Sizes 3-5

10 year Guarantee

The types of doors the MK2 door selectors are specified on are:

Rebated doors

Flush doors with security astragals

Escape doors with a vertical rod device and horizontal rim exit device

Flush doors that are used with a mortice lock/latch

Flush doors with automatic flush bolts

For applications under difficult or unusual conditions please supply all available information for confirmation of specification.

Note: The surface mounted rebate catch must be fitted to meet regulations and for the product to work effectively.

Supplied complete with 4" arm as standard, fixings and full Installation Instructions.

Finishes available:

Silver Anodised

Gold Anodised

Polished Brass

Satin Stainless Steel Effect

Antique Bronze

Black Anodised

RAL 7012 Anthracite Grey*

RAL 9016 Traffic White *

*M.O.Q. 5 pieces

Longer 6" & 8" arms are available for thicker or wider doors and doors with astragals both internally and externally.

These are to order as a seperate item, only available in Silver or Stainless steel effect as standard from stock other finishes available to order as a 'Special order item'. Please contact us for more information on this.

Extended rebated rebates are available to suit cranked astragal and for narrow door rebates - Please contact us for more information.

*Video below shows 'Fire rated' model*
