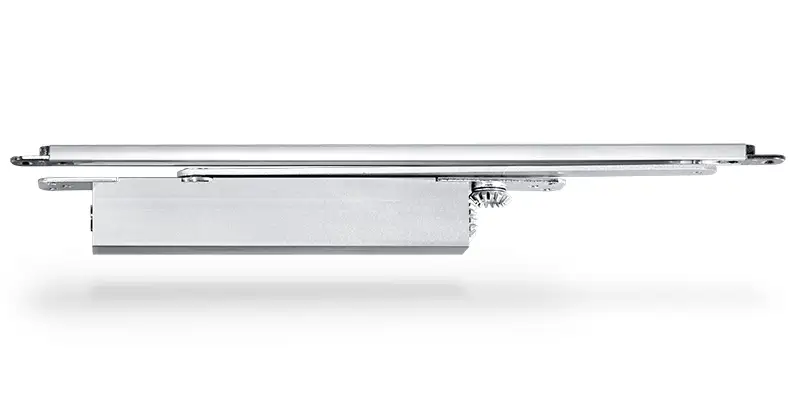

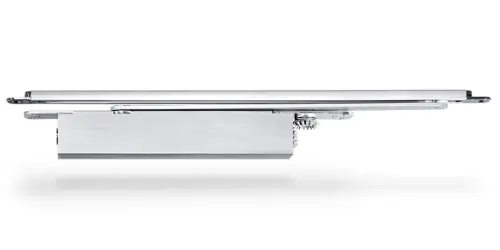

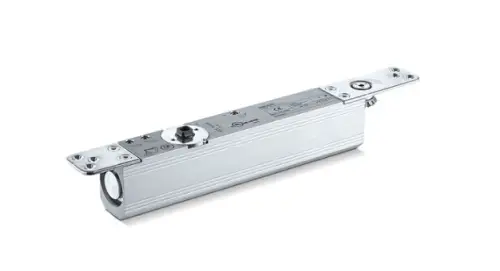

GEZE Boxer Silver Power Size 3-6 Heavy Duty Concealed Cam Action Door Closer

Description

Integrated door closer for single leaf doors with a leaf width of up to 1400 mm

AREAS OF APPLICATION

• Fire and smoke protection doors, proof of suitability for the door required
• Right and left single-action doors
• Single-action doors up to 1400 mm leaf width, for door weight up to 180 kg
• For door leaf thicknesses from 40 mm
• Integrated installation

PRODUCT FEATURES

• Closing force with variable adjustment of EN3-6
• Can be used for right and left hand doors without conversion
• Door closer is embedded in the door leaf and frame and fulfils the highest design demands
• Integrated back check, slows down doors that are thrown open forcefully
• Hydraulic latching action which accelerates the door shortly before it is closed
• Closing speed can be individually adjusted All functions can be adjusted in the installed state
