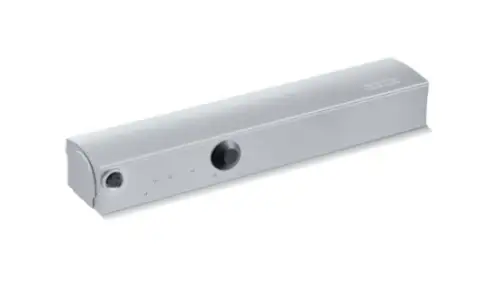

GEZE TS4000E Silver Power Size 1-6 Electro-Magnetic Overhead Door Closer (Hold Open or Free Swing)

Description

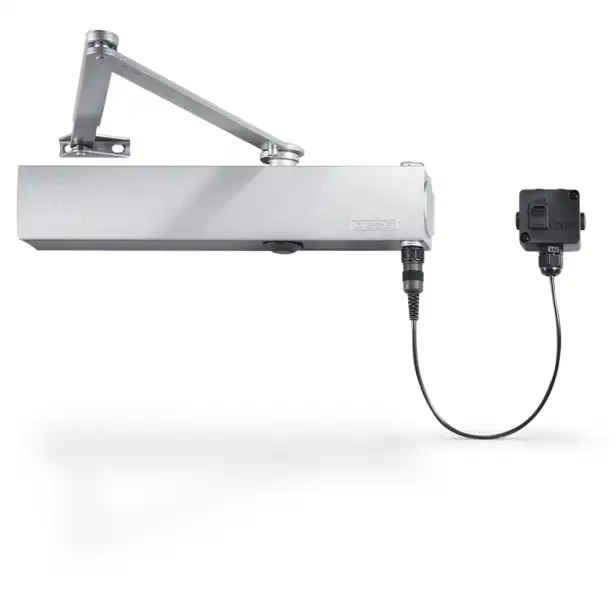

Overhead door closer with link arm for single leaf doors of up to 1400 mm leaf width with electric hold-open or free swing device.

AREAS OF APPLICATION

Fire and smoke protection doors

Right and left single-action doors

Single-action doors up to 1400 mm leaf width

Door leaf installation hinge side and transom installation opposite hinge side

Hold-open systems with integrated hold-open function with free swing only

Barrier-free access in accordance with DIN 18040 with free swing only

PRODUCT FEATURES

• Closing force EN1-6 with variable adjustment
• Operating voltage 24 V DC
• Can be used for right and left hand doors without conversion
• Electric hold-open device with hold-open area 80°-175°
• Electric hold-open device in accordance with EN 1155 suitable for hold-open systems
• Free swing function makes it possible to pass through the door with little physical force required
• Free swing function once the door has been opened once to approx. 90°
• Mechanical latching action which accelerates the door shortly before the closed position
• Closing speed can be individually adjusted
• Visual closing force display for easy control of the setting
• All functions can be set from the front (except for latching action)
