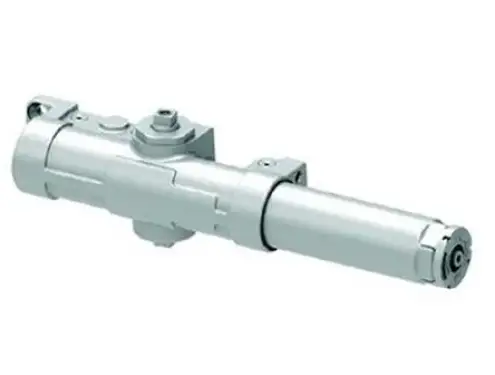

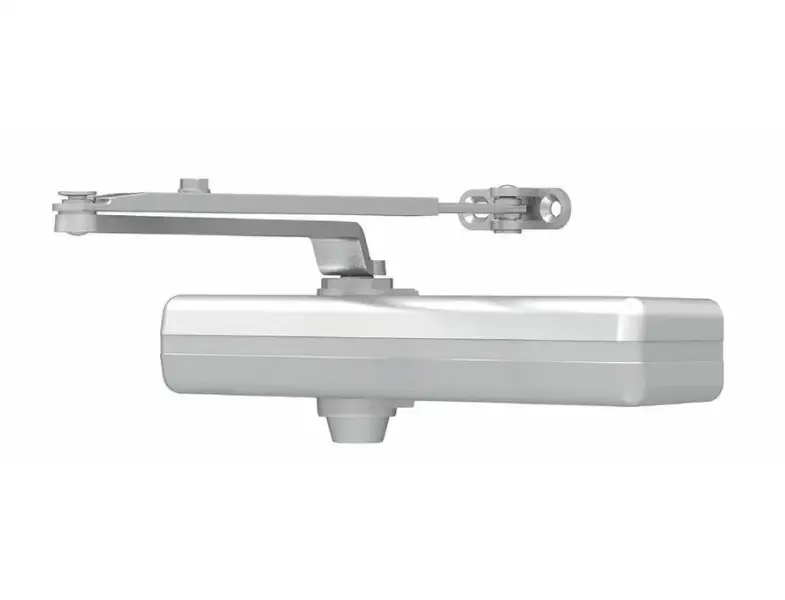

LCN 1461.US28 Standard Duty EN.2-5 Overhead Door Closer with Backcheck & Plastic Cover - Silver

Description

Standard Duty Closer w. Backcheck, Plastic Cover - Adjustable EN Spring Sizes 2—5 (ANSI 1—6). Pull Side of Door, Push Side of Door or Top Jamb (Push Side) Transom.

Suits doors <102 kilos

UKCA & CE certification applies to all applications

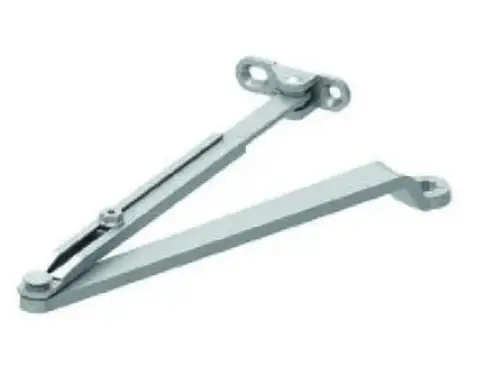

The 1461 is adjustable through EN spring sizes 2—5 (ANSI 1—6) and mounts to the most common commercial footprint. The 1460 Series also features a complete line of regular and extra-duty arms and LCN's peel-n-stick installation templates. The LCN 1460 series crams in amazingly high levels of strength and accurate adjustability. ‘Super Stock’ closers will control internal doors up to 1524mm wide and external (perimeter) doors to 1220mm.

• Hinge (pull side) mounting

• Top jamb (push side) mounting

• Stop face (push side) mounting

• Non-handed for right and left swinging doors

• Adjustable hydraulic backcheck cushions opening swing prior to 90 degrees

• Separate regulation of general closing speed and latching speed

• Joints in arm and shoe adapt to uneven trim

• Reversible shoe to boost latching power on double lever arms

• All Weather Fluid - Performs without variation: Manual Closers - between -35° to +49°C, Electronic HO Closers & Automatic Operators - between +2° to +49°C. At approx. +75°C, the fluid will begin to leak from the mechanism. The flash point is approx. 110°C

Designed for maximum versatility, the 1460 Series can be used for commercial and institutional applications. This fully universal closer (1461) offers various new, fast and accurate installation options. It is best suited to standard duty situations on perimeter and internal doors where a high level of traffic is anticipated.
