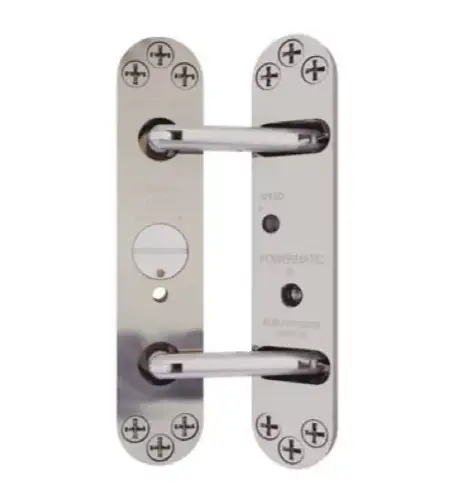

R100-PN PERKO Powermatic Polished Nickel Concealed Hydraulic Door Closer (80kg)

Description

The Samuel Heath PERKO-POWERMATIC concealed door closer is a CE marked, controlled, concealed hydraulic door closer conforming to BS EN 1154: 1997, making it ideal for many commercial, leisure, public and domestic fire door applications.

Invisible when the door is closed, the R100 Perko Powermatic® offers the ultimate in door control without the need to compromise on the appearance of the door itself or the aesthetics of the finished project.

Opening forces comply with the requirements of Approved Document M for doors of a minimum width of 826mm whilst still conforming to BS EN 1154: 1997 due to the 80% “ultra-efficiency” which exceeds the recommended 65% for fire doors on accessible routes, closer and plates should be bedded in Alfacryl FR Intumescent Acrylic Mastic.

Available in four finishes

Light to medium duty door closer

Fixed power size 3

Max door weight 80kg

Max door width 950mm

Maximum opening angle 105°

Adjustable closing speed and power latching action

Fully certified to EN1154

CE marked

UKCA marked

Certifire Approved

BS EN 1634-1 approved for use on FD30 and FD60 fire rated doors

BS 476 tested for use on FD30 and FD60 fire rated doors

Intumescent kit sold separately for fire rated door installation

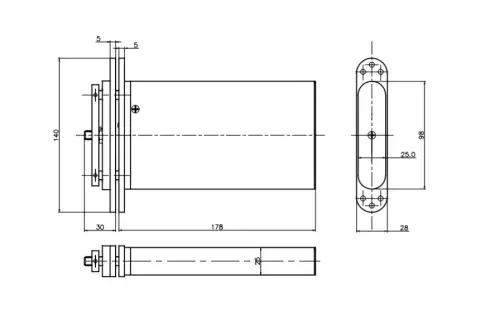

Please note that the door should have a minimum thickness of 44mm. The critical dimension is the distance between the centre of the hinge knuckle and the centre of the door closer’s face plates located in door and frame. This must be between 25 and 35mm.

There is a range of Perko door closers available, including the R2 chain door closer and R85 Perkomatic concealed closer. Contact us for more information.
