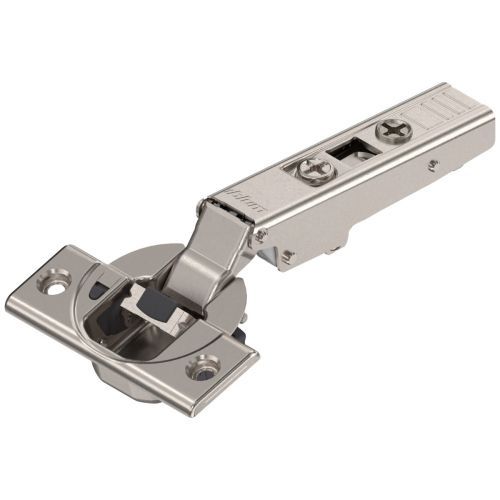

71B3550 BLUM 110° CLIP top BLUMOTION Screw On Overlay Hinge

Description

**Mounting Plate sold seperately - please see related products below**

The CLIP top BLUMOTION hinge is setting new benchmarks: This sophisticated technology for perfect motion is now integrated into the smallest possible space, discreetly in the hinge boss. CLIP top BLUMOTION opens up so many more design possibilities for doors.

• with integrated BLUMOTION

• with deactivation switch

• infinitely variable 3-dimensional setting options

• compatible with all CLIP mounting plates

• tool-free assembly and removal

The perfect technology for perfect motion is now integrated into the smallest possible space, discreetly into the hinge boss. Clip-Top BLUMOTION opens up so many more design possibilities for doors. Your door can now close with a silent, graceful motion.

Why purchase individual components when you can have it all in one? Available in a range of applications, the 110 degree hinge is available with different cranked hinge arms. This option is for the screw on version.

Features

• Blumotion built in

• Overlay application

• Opening angle 110 degrees

• Boss material : steel

• Sprung closing mechanism

• Side adjustment +-2mm

• Depth adjustment +3mm + -2mm with spiral screw

• Nickel plated

• Sold in singles
