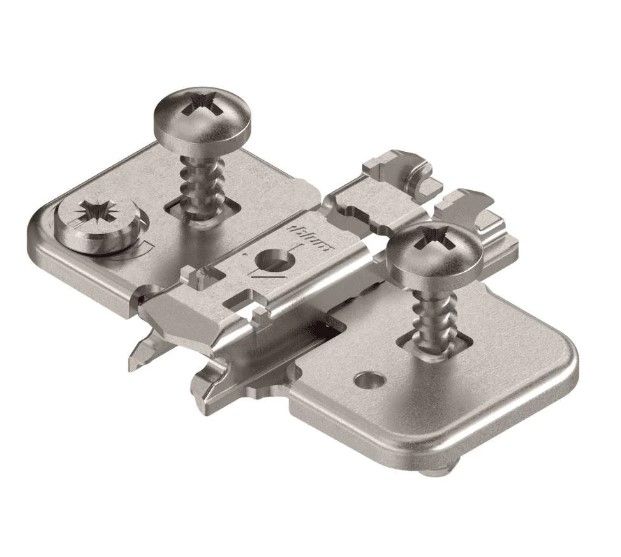

174H7100E BLUM CLIP 0mm Cruciform Steel Cam Adjustable Mounting Plate Expando

Description

Blum clip/clip top hinges and mounting plates simply clip together for easy door assembly. Includes split dowels with pre-mounted screws for inserting within fixing holes in the cabinet sides. If not using existing holes, a handy template is available to mark pilot holes.

Select the option relevant to the thickness of the cabinet side where the plate is to be attached to allow for correct door spacing.

Attributes:

• Mounting plate system: CLIP

• Spacing: 0mm for 18mm cabinetry, 3mm for 15mm cabinetry

• Shape of mounting plate: Cruciform

• Material: Steel

• Finish: Nickel plated

• Fixing: EXPANDO (pre-mounted screws with split dowels)

• Height adjustment: +/-2mm through lower and upper part/cam

Installation:

• Overlay door application: Distance from cabinet front edge to fixing hole centre: 37mm

• Inset door application: 37mm + door thickness +1.5mm clearance to fixing hole centre

• Height between fixing positions: 32mm

• Diameter of fixing holes: 5mm

• Drilling depth of fixing holes: 11.5mm

• Wide angled hinges require an additional fixing screw (min 20mm) to centre of mounting plate
