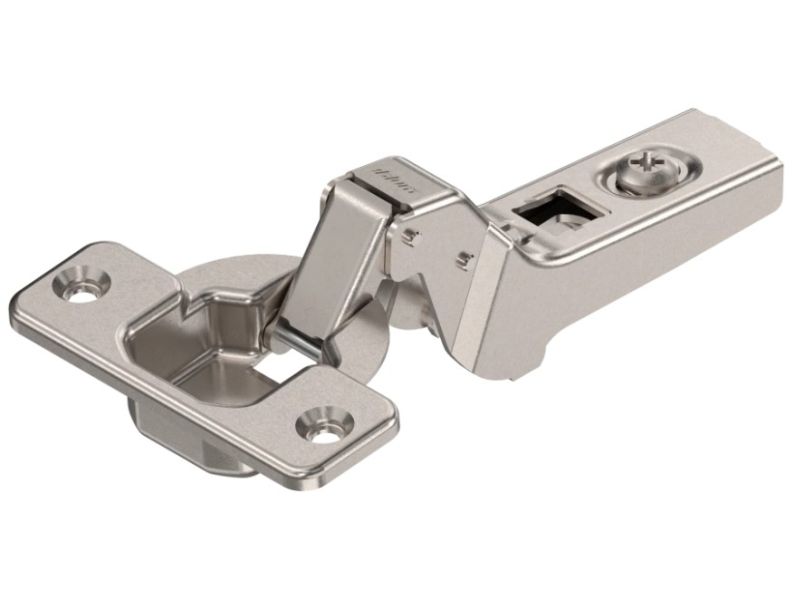

71M2750 BLUM 100° CLIP Screw On Hinge - Inset

Description

**Mounting Plate sold seperately - please see related products below**

A simple "CLIP on" door to cabinet assembly with reliable functionality.

• compatible with all CLIP mounting plates

• tool-free assembly and removal

• Blum 100 Degree Inset Application hinge. 18mm cranked with spring. Nickel plated with increased anti-corrosion resistance. Screw on version, also available in the Inserta option.

Features

• Inset application

• 100 Degree

• Nickel plated

• Clip

• 18mm Cranked

• Sprung

• Lifetime Manufacturer's Warranty

Dimensions

• Flange width 57mm

• Flange length 20mm

• Flange height 3.2mm

• Hinge boss drilling diameter 35mm

• Distance between drilling 45mm

• Boss drilling depth 10.5mm

• Side Adjustment: Plus/Minus 2mm

• Depth Adjustment: Plus 3mm - Minus 1mm (With Screw)
