Description

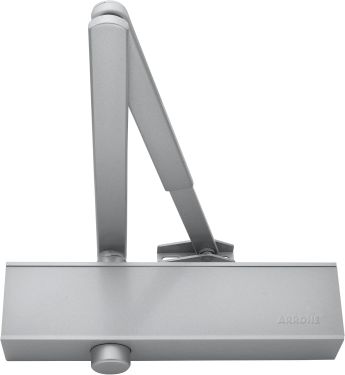

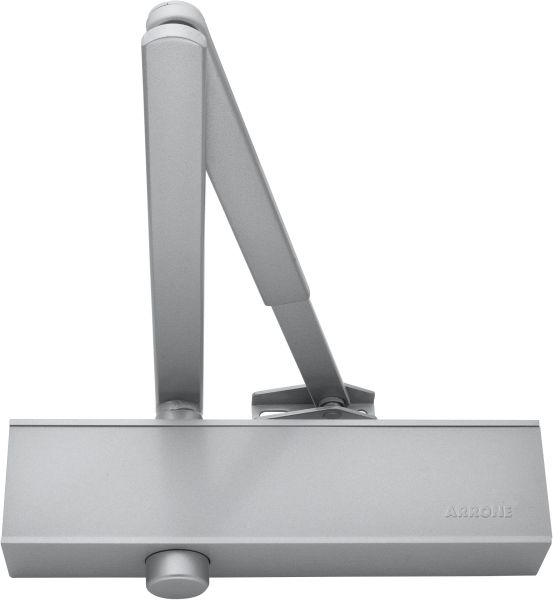

ARRONE overhead door closing device: • Power size: 3 to 5 adjustable by spring tension (Size 2 by template) • Function: Closing, latching, backcheck • Cover: Slide cover • Maximum door width: 1,250 mm (Fig 1), 1,100 mm (Fig 6 and Fig 61) • Maximum door weight: 100 kg (Fig 1), 80 kg (Fig 6 and Fig 61) • Arm application: Fig 1, Fig 6 and Fig 61 fixing positions • Successfully type tested for conformity to all the requirements of BS EN 1154:1997 • - Door mount pull (Fig 1): 4 | 8 | 5/2 | 1* | 1 | 4 • - Door mount push (Fig 6): 3 | 8 | 4/3 | 1* | 1 | 4 • - Transom mount push (Fig 61): 4 | 8 | 4/2 | 1* | 1 | 4 • Included in a successful fire test to BS EN 1634 Part 1. Assessed for use on 30, 60 and 120 minutes timber fire doors and 240 minutes on steel fire doors. • CE Marked: AD0239, UKCA Marked: AD7685 • Certifire approved: CF295, CE DOP: HUK0005, UKCA DOP: HUK0005-UK
MPN:
87112570 SKU:
87112570
