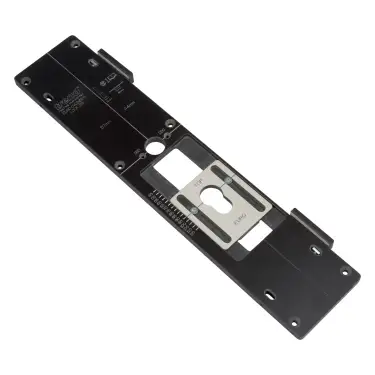

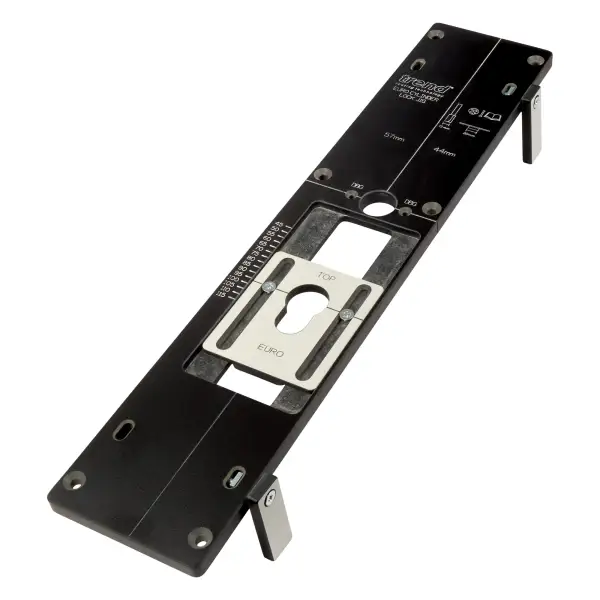

Trend ECL/JIG Euro Cylinder Lock Barrel Jig

Add To Favourites
Trend
£85.50 eachEx. VAT(£102.60 Inc. VAT)

In Stock

(From 0 Reviews)

Description
A quick and easy routing jig to cut hole for Euro Cylinder Lock barrels.|Routs out recess to suit Euro lock cylinder barrel size 33mm x 17mm/10mm.|Sliding plate allows handle pitch to lock body adjustment from 45mm to 115mm.|44mm and 57mm backset.|Jig is designed to give a 1mm clearance around the barrel.|Allows 16mm diameter hole for handle spindle to be routed.|Holes for use with 2.75mm diameter Trend Snappy drill bit guide for marking handle lock plate at 40mm centres.|Made from 12mm thick High Pressure Laminate for longer life.|Long rotating edge stops for use with 44mm doors with leading edge.|Reversible design.|Includes spacer pack to allow for slightly deeper backset|Accessory sliding plates available for small oval and large oval cylinder locks.|Requires plunge router, 12mm diameter cutter and 20mm diameter guide bush.|Cylinder not included.

GTIN:

5027654059760

MPN:

ECL/JIG

SKU:

ECL/JIG
