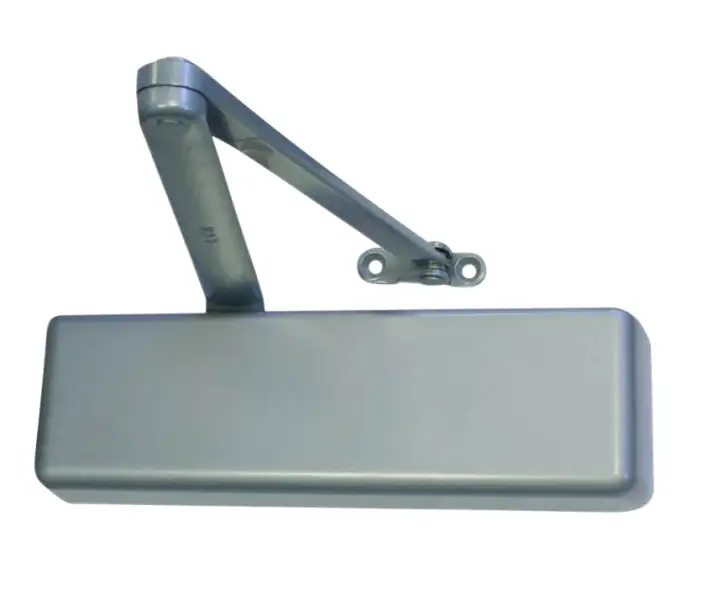

LCN 4040XP.US28 Heavy Duty EN.1-5 Universal Overhead Door Closer with Backcheck & Plastic Cover - Silver

Description

Heavy Duty Closer w. Backcheck, Plastic Cover - Adjustable EN Spring Sizes 1—5 (ANSI 1—6). Pull Side of Door, Push Side of Door or Top Jamb (Push Side) Transom*.

Suits doors <102 kilos

*UKCA & CE certification does not apply to this application

The LCN 4040XP sets a new standard for reliability, longevity, and value with a beefier design and extraordinary performance testing far beyond industry requirements. We built the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger and smarter and delivers remarkable value in various applications.

The 4040XP is LCN’s most durable heavy-duty closer designed for the most demanding, high-use and abuse applications.

• Hinge (pull side) mounting

• Top jamb (push side) mounting

• Stop face (push side) mounting

• 44% increased bearing load capacity

• Strongest pinion ever- at 19mm journal diameter

• Widest bearing ever- at 16mm

• Stronger pinion teeth

• New V-shield™ seal with 20% longer life

• XP = eXtra Protection in real-world applications

• Cast Iron

• Forged Steel Arm

• Double Heat Treated Steel Pinion

• All Weather Fluid - Performs without variation: Manual Closers - between -35° to +49°, Electronic HO Closers & Automatic Operators - between +2° to +49°C. At approx. +75°C, the fluid will begin to leak from the mechanism. The flash point is approx. 110°C

• Non-Handed

• LCN® Fast™ Power Adjust

• Fast & Accurate Installation

The 4040 Series is LCN’s most durable and flexible heavy-duty closer, fully certified to EN 1154 and ANSI A156.4. It will cope with the most gruelling applications and has earned an unrivalled reputation for extreme durability and reliability.
