RP60 Raven Surface Mounted Automatic Drop Down Seal 920mm (can be cut down to 450mm)

Description

THIS DROP DOWN SEAL AT 920MM CAN BE CUT DOWN AS SHORT AT 450MM ALL FROM THE SAME UNIT

An adjustable, automatic door bottom seal which is spring loaded to lift clear of the floor when the door is opened. Operated automatically by pressure against the door stop on its adjusting screw and incorporates concealed fixings.

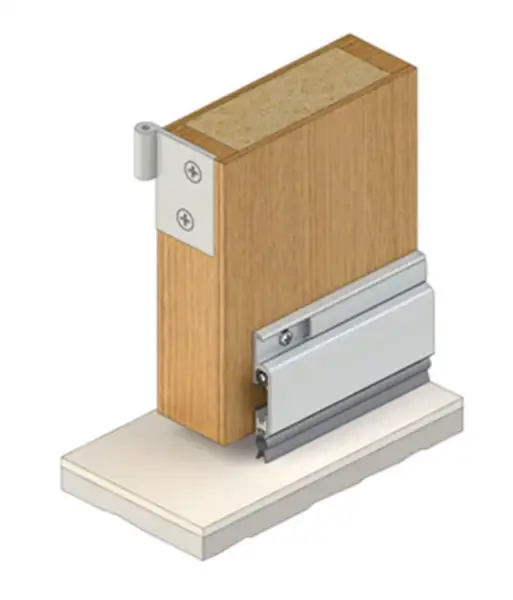

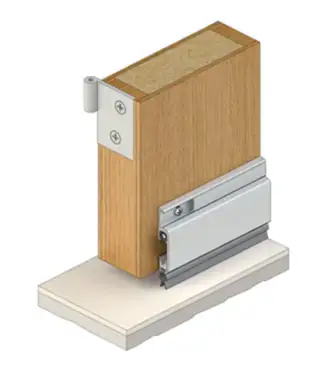

• Location: Face mounted on the bottom of single and double butt hinged doors.

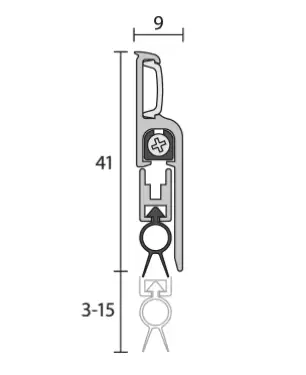

• Min/Max Gap: 3mm to 15mm.
• Finish: Satin clear (silver).
• Fixing: Concealed screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied. Fixing holes are pre-slotted.
• Seal: RP460. Black TPE.
• Sizes: 915mm maximum (between door stops). Unit cuts back to 450mm (min)​​​​​​​

Certification/Fire Test Reports:

• ​​​​​​​Fire AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1.
• UK/EU: Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
• FRL & FRR-/240/30 and FD240.Fire Approved
• Energy NCC Pt. 3.12.3.3 & J3.4.
• Design for Access and Mobility High efficiency mechanism to assist with the closing force requirements detailed in AS1428.1.
• Durability Tested to over 500,000 operating cycles without failure.
